Heat exchanger for industrial applications
We create qualified solutions in addition to reliable products.

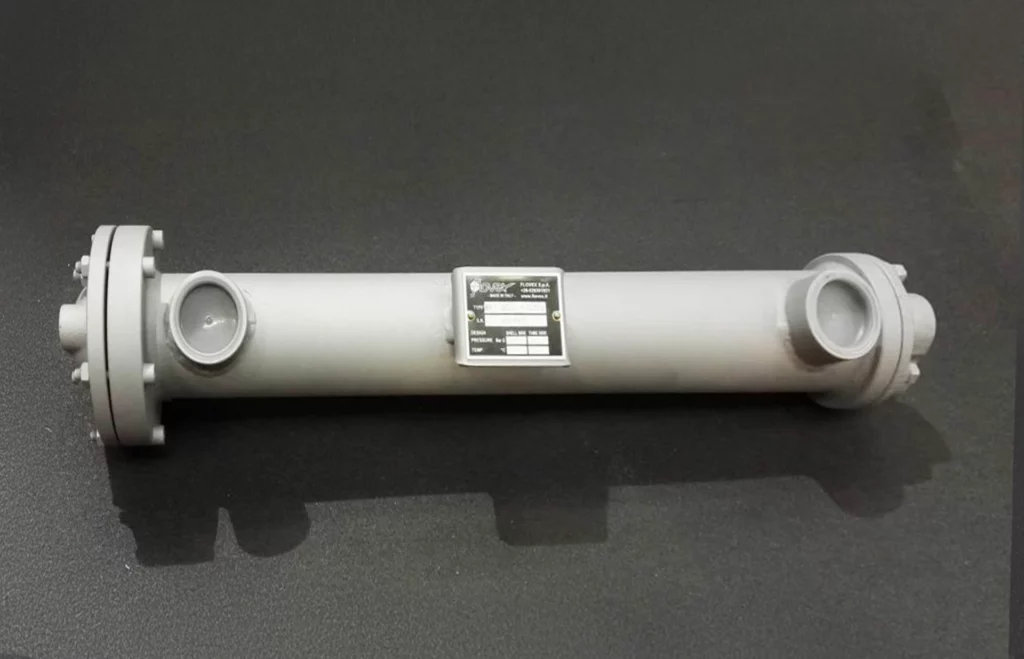

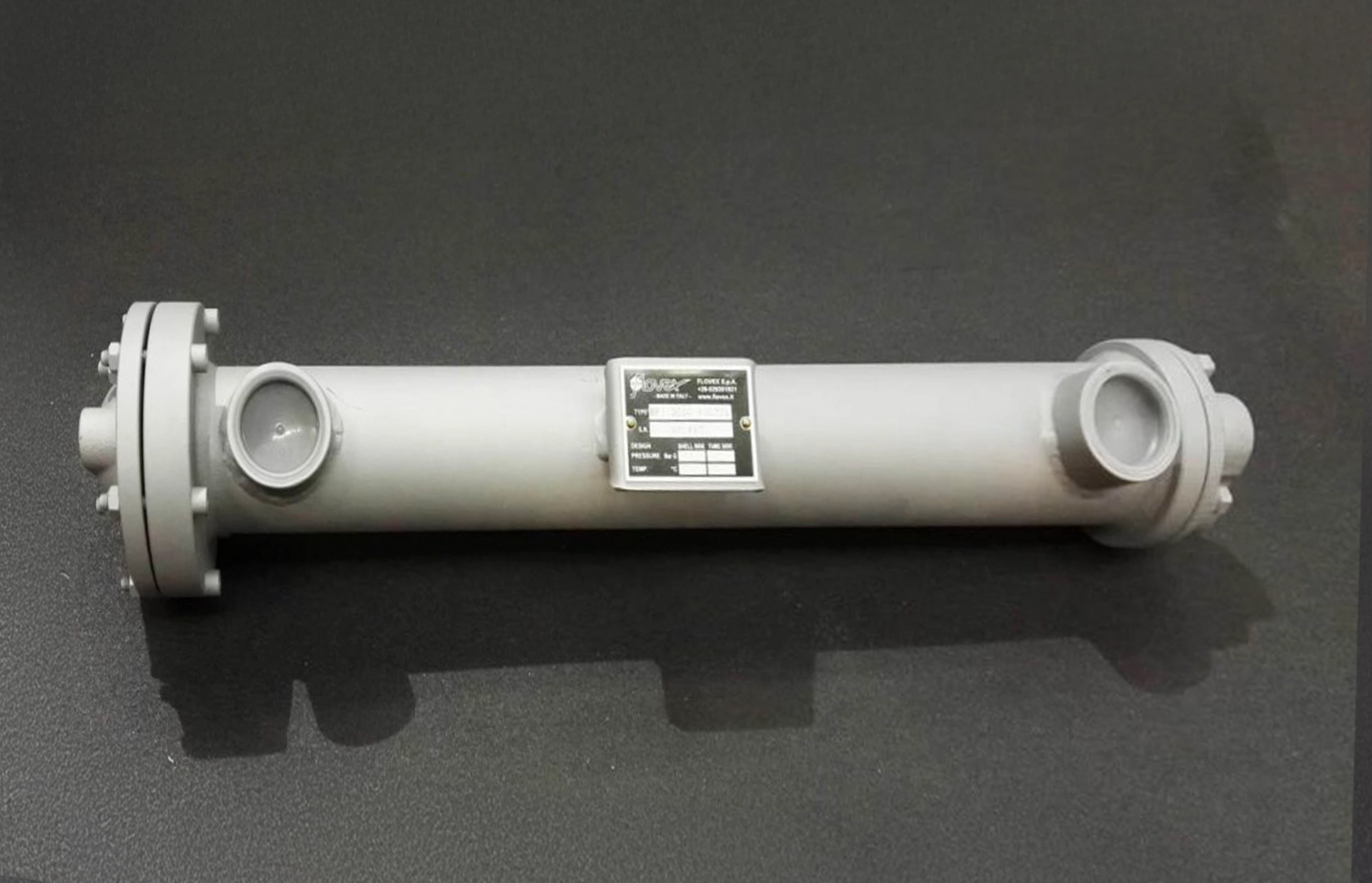

The BP series exchangers are the most economical and reliable solution for those who need to condition high temperature fluids. The characteristic of this series is the floating head designed to withstand strong thermal shocks since the tube bundle is free to expand independently of the body.
Different configurations are created for the materials and types of tube used; There are two temperature classes: type O and type H.
Tubes
The tubes used are of two different diameters:
[5/8”] available fully finned in copper or smooth in iron and inox
[3/8”] available smooth in stainless steel
Baffles
Printed from sheet steel and perforated by punching. Both the holes and the external diameter of the deflectors allow strict and defined tolerances to guarantee maximum thermal efficiency.
Shell
It can be realized through different combinations of materials between covers and shell, hence carbon and stainless.
Connection can be made with both threads BSP and flange UNI – SAE – ANSI.
Covers
Standard executions expect cast iron covers, in 2 or 4 pass version, realized by molding or carbon/stainless steel covers made by mechanical machining and/or welding of multiple parts. Connections are proposed with both BSP threads and with UNI – SAE – ANSI flange.
